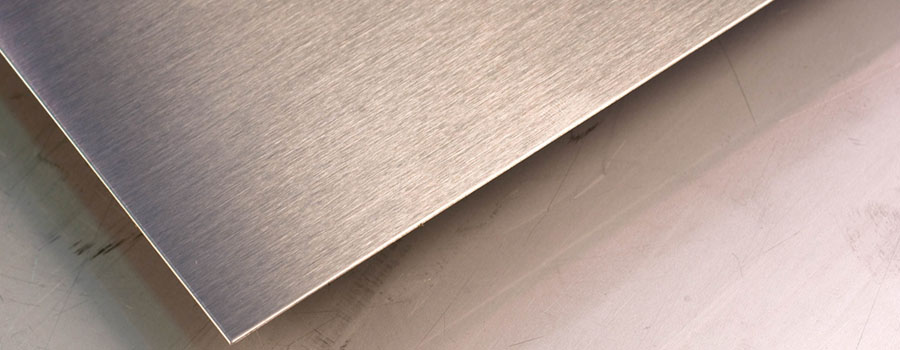

Inconel 600/601 Sheets & Plates

Inconel 600 Plates, Inconel Werkstoff No 2.4851 Sheets, Alloy 600 Sheets, ASTM B 168 Inconel 601 Shim Sheets, Inconel UNS N06600 Plates, Inconel 601 Cold Rolled Plates, 601 Alloy Plate, 600 Alloy Plate Suppliers in India.

Inconel Werkstoff No 2.4816 Sheets, ASME SB 168 Inconel 601 Plate, Inconel 600 Cold Rolled Plates, Inconel 601 Sheets, 600 Inconel Polished Cold Drawn Plates, ASME SB 168 Plate Manufacturer in India.

We are Manufacturer, Supplier & Exporter of Inconel 600 / 601 Sheets, Plates that are being sourced by using high quality of raw material and makes sure toprovide durability of highest quality of industry standard products. Inconel 600 Sheets and Plates is a nickel-chromium alloy designed for the usage from cryogenic to high temperatures in the array of 2000°F (1093°C). Inconel 601 Plates, which are generally used in high temperature static applications. ASTM B166 Inconel 601 Plates is a nickel-chromium alloy that offers outstanding resistance to oxidation through 1204 Degree C. ASTM B167 Alloy 601 Plates is a nickel-chromium alloy withan addition of aluminium for outstanding resistance to oxidation and other forms of high-temperature corrosion.

The product is also being used for applications at high temperatures now and it is also known as UNS N06601. Manufactures make this Inconel product in the respect of both international and national quality standards. Every year, it is produced in tons in order to fulfill the needs of many industries across the globe. We lend the raw materials for manufacturing Inconel Alloy 601 Sheets from renowned and honest vendors. The presence of Nickel in our Inconel Alloy 601 Shim Sheets gives them immunity under extreme and elevated temperatures. Also, our Inconel Alloy 601 Perforated Sheets and Alloy 601 Hot Rolled Sheets can combat oxidation up to extreme temperatures of about 2200° F.

Specification

Grade	Inconel 600 | UNS N06600, Inconel 601 | UNS N06601
Standard	ASTM B168 / ASME SB168
Thickness	0.1mm To 12 mm
Size	1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Applications	Off-Shore Oil Drilling Companies, Power Generation, Petrochemicals, Gas Processing, Specialty Chemicals, Pharmaceuticals, Pharmaceutical Equipment, Chemical Equipment, Sea Water Equipment, Heat Exchangers, Condensers, Pulp and Paper Industry

Grade Specification

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr23Fe

Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 600	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00
Inconel 601	0.10 max	1.00 max	0.50 max	0.015max	1.00 max	Balance	58.0 – 63.0	21.0 – 25.0

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %
